Creating A Simple Responsive Navigation

Creating A Simple Responsive Navigation


Creating A Simple Responsive Navigation

This tutorial is designed to show you how to create a simple, responsive navigation. By no means is this tutorial hard – it too is simple and straightforward. I will be going over everything that goes into making this responsive navigation, so that you have a solid understanding of what is going on.

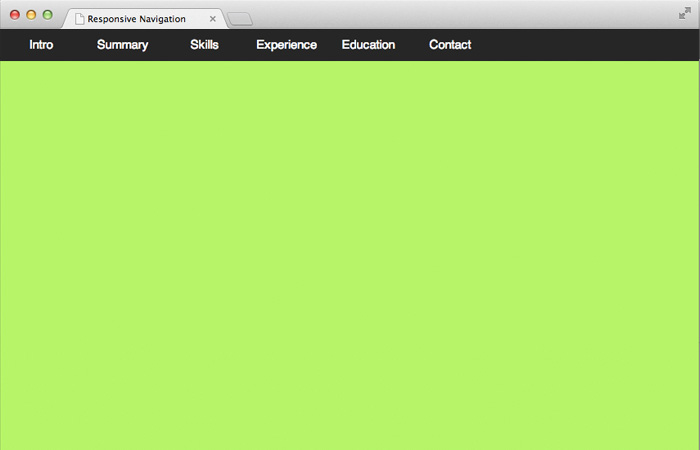

Before starting to code anything, I think it is very important to know what it is you are building. Below you'll find photos of what this responsive navigation will look like. It has two different looks: one of spread out links like a typical desktop navigation is, and, another look of an accordion that will be used for the mobile versions. Like I said, this is a very simple and clean navigation.

HTML

First things first, we need to define the HTML structure of the navigation. As you can see, the code below is HTML5. You should place it within the body of your HTML5 document. There are six links with arbitrary names that link to different sections within the same document. They are named one through six for easy comprehension. Additionally, in the nav tag you see that outside the unordered list is another link. This is the link that will be visible for mobile versions of this navigation.

<nav>
	<ul>
		<li><a href="#one">Intro</a></li>
		<li><a href="#two">Summary</a></li>
		<li><a href="#three">Skills</a></li>
		<li><a href="#four">Experience</a></li>
		<li><a href="#five">Education</a></li>
		<li><a href="#six">Contact</a></li>
	</ul>
	<a href="#" id="pull">Menu</a>
</nav>

Now that this is done with, it is time to create the different sections for the links to travel to. For now, nothing won't be happening when you click, as the sections aren't defined or filled for anything to happen.

<section id="one"></section>
<section id="two"></section>
<section id="three"></section>
<section id="four"></section>
<section id="five"></section>
<section id="six"></section>

CSS

Like with any other CSS, you can link an external file in or, to keep things simple, place it in the head of the document so that you don't have to flip between different files.

Now, let's start the CSS styling by defining the shape of the six sections we just created. As you can see they are the same with the only difference being their background colour. This should be very easy to copy one by one in. The sections don't really need to be any more different as for now they are only there to help indicate that the navigation is actually working and jumping from one section to the next – which you can clearly see by the changes in colour.

/* Div Styling */
#one{
	width: 100%;
	height: 250px;
	background: #9FF;
}
#two{
	width: 100%;
	height: 250px;
	background: #9F6;
}
#three{
	width: 100%;
	height: 250px;
	background: #9F0;
}
#four{
	width: 100%;
	height: 250px;
	background: #CF0;
}
#five{
	width: 100%;
	height: 250px;
	background: #CF9;
}
#six{
	width: 100%;
	height: 250px;
	background: #F93;
}

Before we style the navigation, I want to add a little trick called clearfix. What it does is help display an element, usually a div or a section, as a block no matter what. Sometimes when you write CSS things get messed up – especially when you use the float property. In this case the clearfix won't do much as there isn't a lot going on, but it is a good practice to use it in the most important element, like the navigation.

/* Clearfix */
.clearfix:before,
.clearfix:after {
    content: " ";
    display: table;
}
.clearfix:after {
    clear: both;
}
.clearfix {
    *zoom: 1;
}

Now let's add the clearfix class to both the nav section and the ul.

<nav class="clearfix">
	<ul class="clearfix">

Perfect. Now we can focus on styling the navigation itself. As you can see in the following code, there isn't much to this navigation. It is a dark gray rectangle that hangs onto the top of the page. You can fiddle with the style as you wish; the only thing you should keep constant is that the li's ought to be on the same line, like in the example. The other thing is that the link I've pointed out earlier (the one outside of the unordered list) should be hidden while a user is viewing this site on a larger screen.

/* Navigation */
nav {
	height: 40px;
	width: 100%;
	background: #262626;
	font-size: 11pt;
	position: fixed;
	top: 0;

}
nav ul {
	padding: 0;
	margin: 0;
	height: 40px;
}
nav li {
	display: inline;
	float: left;
}
nav a {
	color: #fff;
	display: inline-block;
	width: 100px;
	text-align: center;
	text-decoration: none;
	padding:9px 0;
}
nav a#pull {
	display: none;
}

Thanks to CSS3, we can implement a media query to make this navigation, in fact, responsive. What is happening below is you are defining a new set of CSS rules that will override or be added in addition to, the already in place CSS if the criteria is met. In this query the criteria is that if the screen's width is at maximum 800px, then use the following code.

When you are placing CSS within media query you need to be aware that you need to explicitly say what it is you want to happen. For instance, if you want the width of an element to be 100px instead of 40px, you'd write 'width:100px'. However, if you no longer want an element to float right, you would need to specify that its float is now none because otherwise it would assume you still want it to float right. This is exactly what is going on in the code below. Take a look at it and see that this is exactly what is going on in the media query below.

@media screen and (max-width: 800px) {
	nav {
		height: auto;
		border-bottom: 0;
	}
	nav ul {
		display: none;
		height: auto;
	}
	nav li {
		width: 100%;
		float: left;
		position: relative;
		border-bottom: 1px solid #262626;
  	}

  	nav a {
	  	text-align: left;
	  	width: 100%;
	  	text-indent: 25px;
			background: #2e2e2e;
  	}
  	nav a:hover {
	  	background:#444;
  	}

	nav a#pull {
		display: block;
		background-color: #262626;
		width: 100%;
		position: relative;
	}
	nav a#pull:after {
		content:"";
		background: url(nav-icon.png) no-repeat;
		width: 30px;
		height: 30px;
		color: #FFF;
		display: inline-block;
		position: absolute;
		right: 15px;
		top: 10px;
	}
}

Making it work

In order for this navigation to work you will need one more thing, which is jQuery to animate the mobile navigation. As of right now, the navigation is resizing but nothing is happening when you click the mobile navigation's menu link. So, let's fix it.

Within the head of your document, include a link to jQuery's library. Without it, the code we are about to include is not going to work; it is simply the way jQuery works. If you want to, you could download the file and include a link to it locally. It is actually better practice, but for this tutorial it is unnecessary.

<script type="text/javascript" src="https://ajax.googleapis.com/ajax/libs/jquery/1.7.2/jquery.min.js"></script>

Now we can write some jQuery. Below you'll find that the code is very short and sweet. Basically what is happening is we are animating the menu link to literally toggle up and down when you click it. On top of that, when the menu link is down, the listed links become visible. If you know your way around jQuery you could add a bunch of cool effects to this toggle such as an animation effect or speed of toggle. It is all up to you.

$(function() {
		var pull 		= $('#pull');
				menu 		= $('nav ul');

		$(pull).on('click', function(e) {
			e.preventDefault();
			menu.slideToggle();
		});

		$(window).resize(function(){
			var w = $(this).width();

			if(w > 800 && menu.is(':hidden')) {
				menu.removeAttr('style');
			}
		});

		$('li').on('click', function(e) {
			var w = $(window).width();
			if(w < 800 ) {
				menu.slideToggle();
			}
		});

		$('.panel').height($(window).height());

	});
